JOVEN JSH-25 HE Horizontal Storage Water Heater

Product details of [Bulky] Joven JSH25HE / JSV 25 Storage Heater ( 25L )

JSH25 /

Innovative Features

Centralised multi-point system with enhanced dry-burn protection

For 1 sink or 1 normal shower

Capacity 25L ; 5.5 Imp. Gallons

Power rating 3.0kw; 240V

Hot water up to 70°C

High quality incoloy heating element

SUS304 Stainless Steel Tank

High density CFC-Free Polyurethane Insulation Foam for durability and stellar performance

Accessories

Universal mounting ring bracket (Patent Pending)

Expansion Bolts

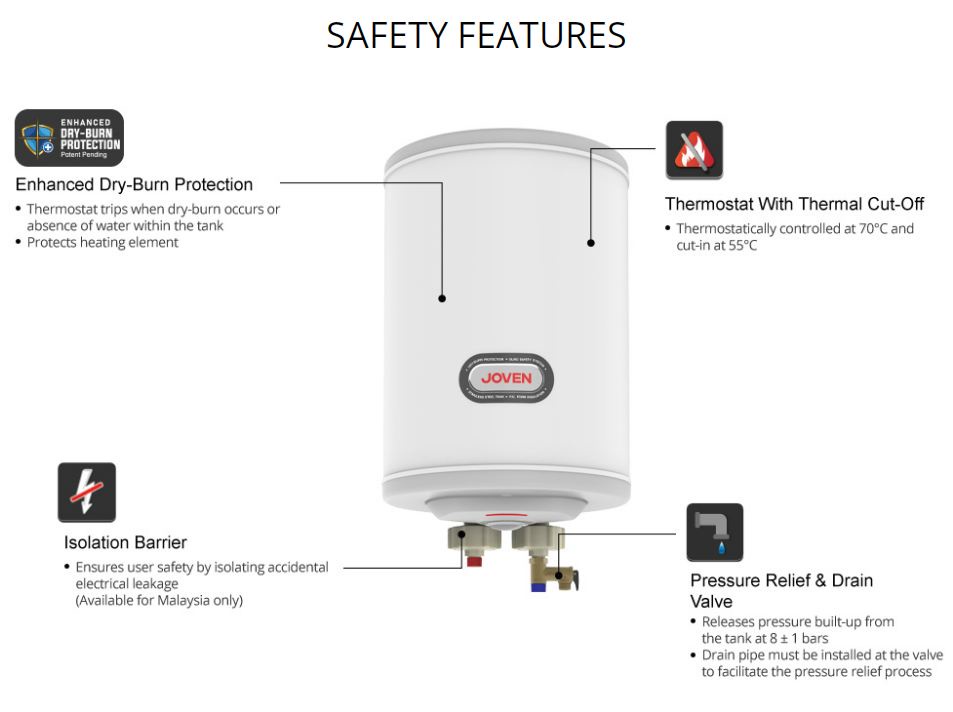

Safety

Enhanced Dry-Burn Protection

Thermostat with thermal cut-off

Pressure relief and drain valve

Isolation barrier (for Malaysia only)

Electrical Loading

3.0kw ; 15.0A ; 240 Va.c. ; 50 Hz

Tank Capacity

25 Litres (5.5 Imp. Gallons)

Time Taken To Heat Max 70°C

20 Mins ( 1st Heat Up From Cold Water )

10 Mins ( Subsequent Heat Up )

Recommended Water Pressure

1 – 4 Bar

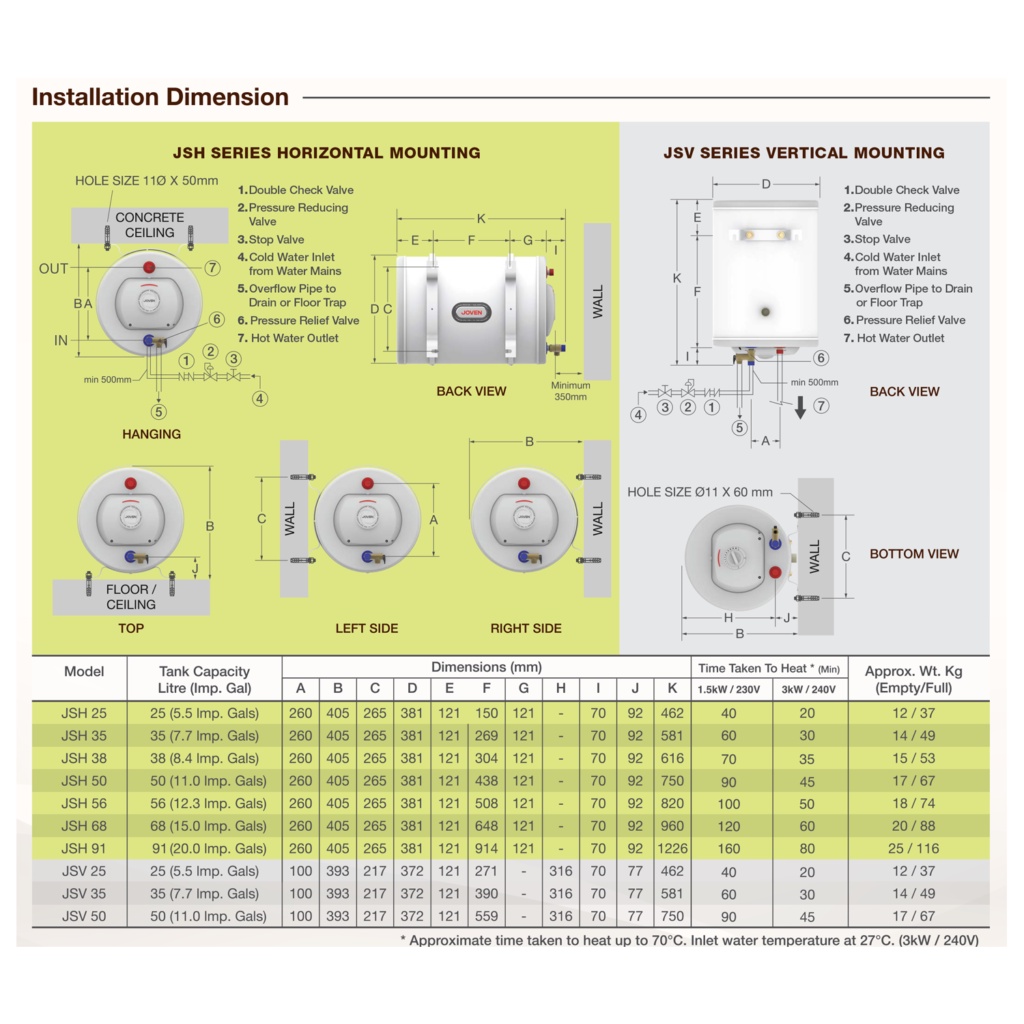

Dimensions (W * H * L)

381 x 405 x 522 mm

Approx. Weight

Empty : 12 kg ; Full : 37 kg

Product details of [Bulky] Joven JSV 25 Storage Heater ( 25L )JSV25

Innovative Features

Centralised Multi-Point System With Enhanced Dry-Burn Protection

For 1 Sink or 1 Normal Shower

Capacity 25L ; 5.5 Imp. Gallons

Power rating 3.0kw; 240V

Hot water up to 70°C

Adjustable Temperature Control Knob (Low, Med & High)

High quality incoloy heating element

SUS304 Stainless Steel Tank

High Density CFC-Free Polyurethane Insulation Foam for durability and stellar performance

Accessories

Wall Bracket For Mounting

Expansion Bolts

Safety

Enhanced Dry-Burn Protection

Thermostat with thermal cut-off

Pressure relief and drain valve

Isolation barrier (for Malaysia only)
